Z32 Swap Brake Help. Empty Z32 Swap Brake Help.

Post  Blades15 Tue Mar 08, 2011 4:31 pm

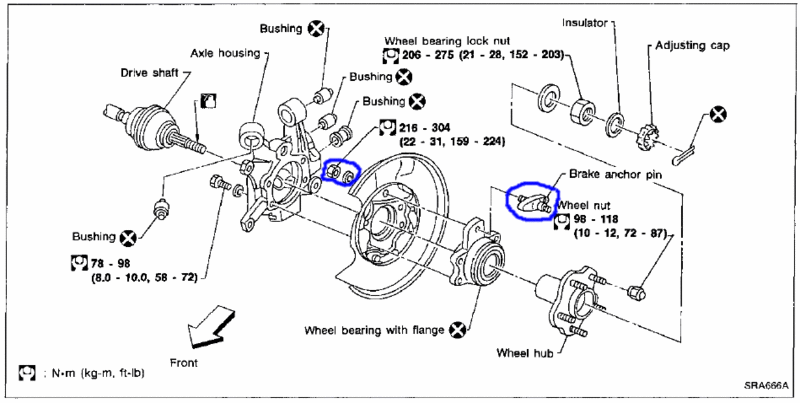

Z32 Swap Brake Help. Sp32-210


Need help knowing EXACTLY which parts I'm going to need to get this E-brake kit running. Shuush Ricky.
I know I need the Backing plate as the ebrake assembly is contained within there... and everything right of it with exception to the hubs. I know I need a thicker torx style brake anchor pin. My question is can i use the stock wheel bearing & flange? Will it fit or do i need a z32 Flange/bearing? Also, does anyone know which years of z32 the torx style anchor pin comes off of?


Z32 Swap Brake Help. Img_0010

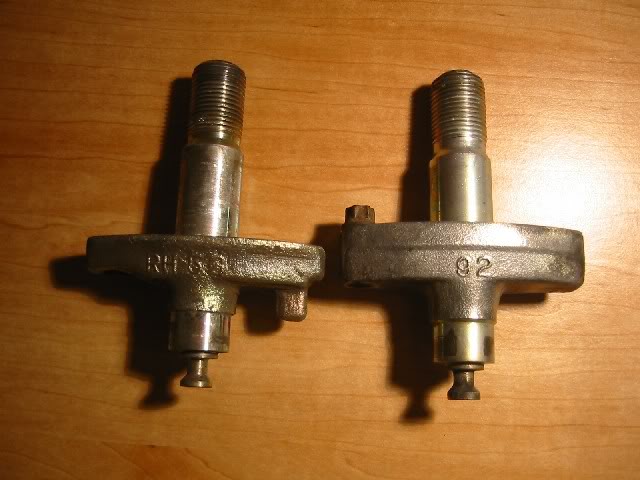

^The Right anchor pin is the one that fits S13's and the one I'm looking for.
Thanks!
Blades15
Blades15

Posts : 64
Join date : 2011-02-17
Age : 33
Location : Fresno

Back to top Go down

Z32 Swap Brake Help. Empty Re: Z32 Swap Brake Help.

Post  StryfeS13 Tue Mar 08, 2011 7:37 pm

GET THE 2003 ALTIMA ROTORS AND Z31 CALIPER BRACKETS AND YOU'LL HAVE THE SAME THING!!!!!!!!!!!! Razz
StryfeS13
StryfeS13
Moderator

Posts : 149
Join date : 2011-02-01
Age : 33
Location : Clovis

https://fresno240sx.forumotion.com
